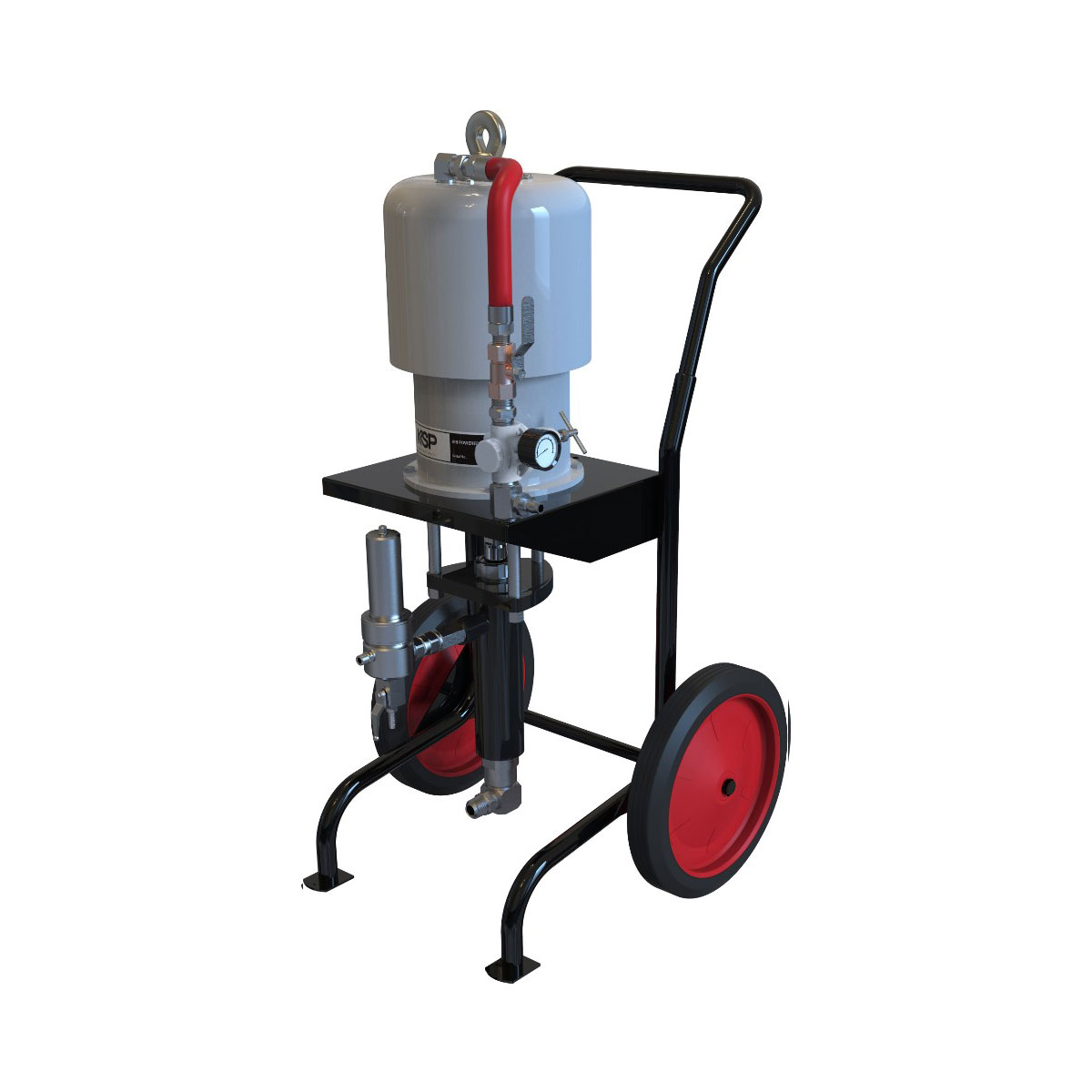

KK PUMP SERIES
| TECHNICAL DATA | KK 45:1 | KK 63:1 |
|---|---|---|
| FLUID PRESSURE RATIO | 45:1 | 63:1 |
| DELIVERY(LITER)/MIN | 15.8 | 12.2 |
| CC PER CYCLE | 263 | 203 |
| MAX. PUMP SPEED / MIN | 60 | 60 |
| AIR MOTOR DIAMETER(INCH;MM) | 10(254) | 10(254) |
| STROKE LENGTH(MM) | 127 | 127 |
| AIR POWERED RANGE(BAR) | 1-7 | 1-7 |
| MAXIMUM PRESSURE(PSI;BAR) | 4568(315) | 6396(441) |
- All packages completely tested and ready to spray
- Spray a variety of fluids from conventional coating to high performance corrosion control coating
